SMT-P-RST-.563-312 – MS14103-3
$1,750.00
Price:$1750
SMT Part Number:SMT-P-RST-.563-312
Bearing Number:MS14103-3
Bearing OD (Outer Diameter):0.625
Bearing ID (Inner Diameter):0.19
NAS0331 Proof Load Value:562.5
Corresponding Load Cell:LTH300(5/16,1000)

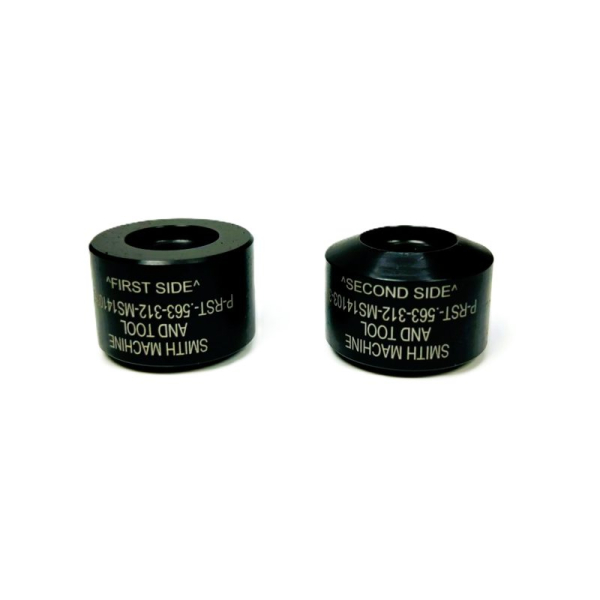

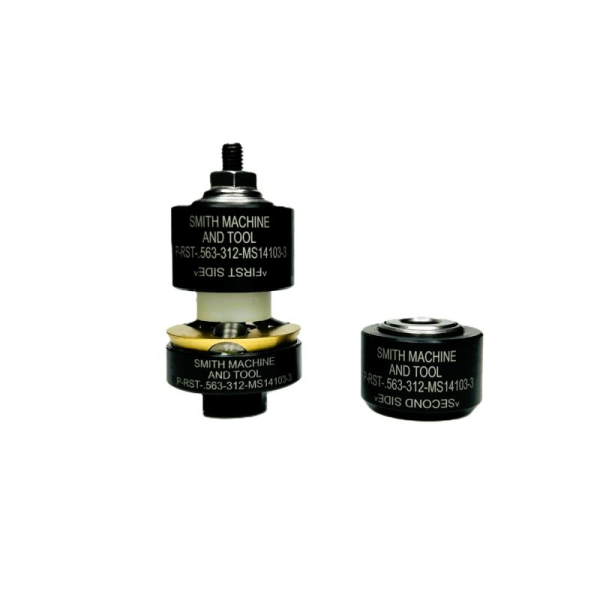

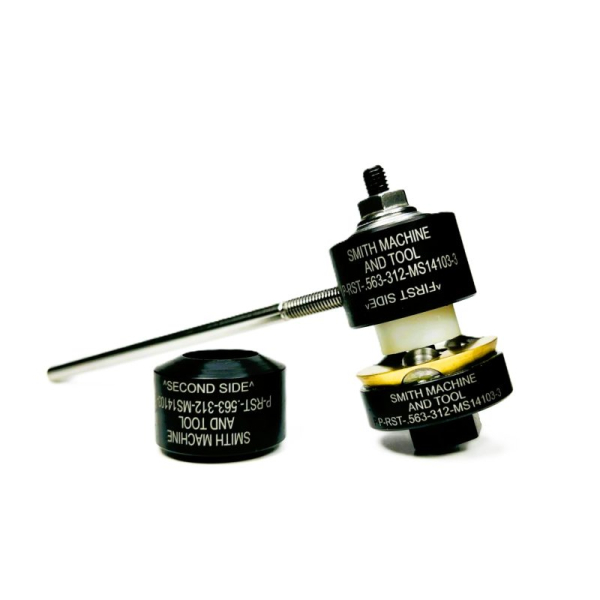

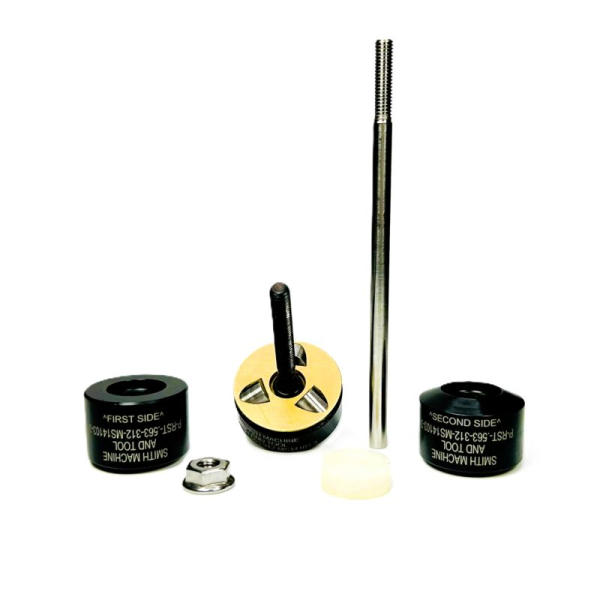

Description:This is a Portable Tri-Roller Swaging Tool for bearing MS14103-3 manufactured in the USA made from tool steel. This is a complete tool used to portably swage a bearing by hand using a socket wrench into a housing. This tool is heat treated and coated in black oxide.
Alternative Part Numbers:KMT0202-16 (V97613), RKS4101-16 (V77896), IPST4103-3, NPT3001, AST3001, HRT-103-3, MS212303
