SMT-P-IPR-KIT-MS14103-4 – MS14103-4
$1,000.00
Price:$1000
SMT Part Number:SMT-P-IPR-KIT-MS14103-4
Bearing Number:MS14103-4
Bearing OD (Outer Diameter):0.625
Bearing ID (Inner Diameter):0.25
NAS0331 Proof Load Value:562.5
Corresponding Load Cell:LTH300(5/16,1000)

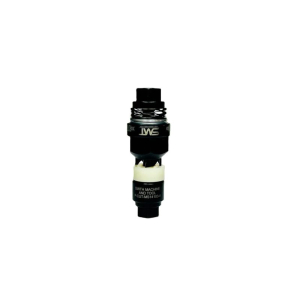

Description:This is a Portable Installation, Proof-Load, Removal Tool for bearing MS14103-4 manufactured in the USA made from tool steel. This comes with a flat install base, guide bushing, and pusher used to install and push out a bearing. The portable proof-load tool can be used with a digital or dial indicator that is used with a donut load cell to proof-load a bearing using special proof-load dies (not included, but available upon request). This tool is heat treated and coated in black oxide.
Alternative Part Numbers:ST927B-3, ST918A-250-625, IPIR4103-4, NPIR3002
