These bearing and tool part numbers are for reference only. All crossover bearings should be verified by SMT Engineering for accuracy and validity.
Price:$1000
SMT Part Number:SMT-P-IPR-KIT-MS14101-3
Bearing Number:MS14101-3
Bearing OD (Outer Diameter):0.5625
Bearing ID (Inner Diameter):0.19
NAS0331 Proof Load Value:506.25
Corresponding Load Cell:QSH02410(3/8, 3000)

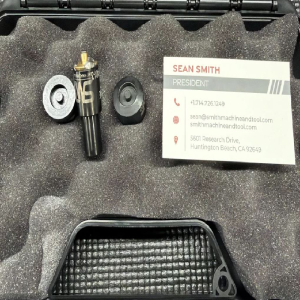

Description:This is a Portable Installation, Proof-Load, Removal Tool for bearing MS14101-3 manufactured in the USA made from tool steel. This comes with a flat install base, guide bushing, and pusher used to install and push out a bearing. *Swage tool sold separately. The portable proof-load tool can be used with a digital or dial indicator that is used with a donut load cell to proof-load a bearing using special proof-load dies (not included, but available upon request). This tool is heat treated and coated in black oxide.
