SMT-P-IPR-KIT-MS14101-16 – MS14101-16
$1,250.00
Price:$1250
SMT Part Number:SMT-P-IPR-KIT-MS14101-16
Bearing Number:MS14101-16
Bearing OD (Outer Diameter):1.75
Bearing ID (Inner Diameter):1
NAS0331 Proof Load Value:2800
Corresponding Load Cell:LTH500(1.0,5000)

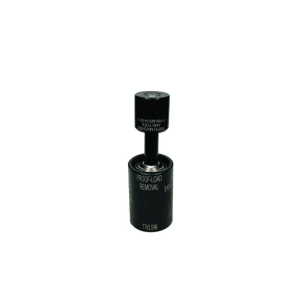

Description:This is a Portable Installation, Proof-Load, Removal Tool for bearing MS14101-16 manufactured in the USA made from tool steel. This comes with a flat install base, guide bushing, and pusher used to install and push out a bearing. The portable proof-load tool can be used with a digital or dial indicator that is used with a donut load cell to proof-load a bearing using special proof-load dies (not included, but available upon request). This tool is heat treated and coated in black oxide.
Alternative Part Numbers:ST927-12, ST918A-1000-1750, IPIR4101-16, NPIR3019
