P-BAC-MS14103-12
Price:$Inquire for details
SMT Part Number:P-BAC-MS14103-12
Bearing OD (Outer Diameter):1.375
Bearing ID (Inner Diameter):0.75
Corresponding Load Cell:LTH400 OR LTH350

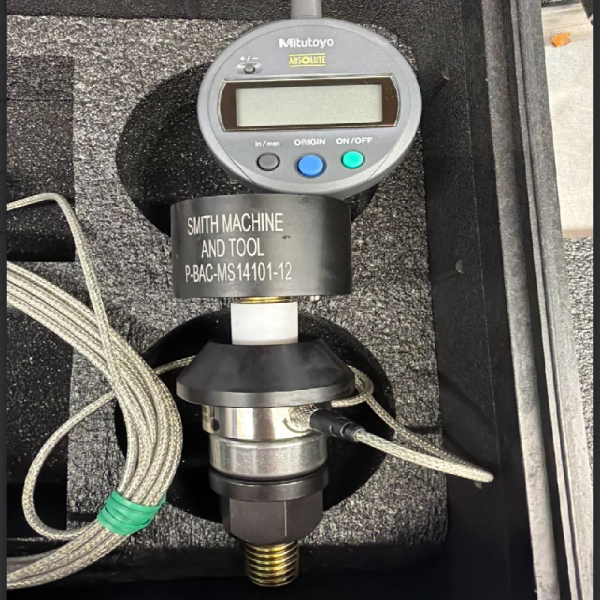

Description: This is a Portable Installation, Proof-Load, Removal Tool for bearing MS14103-12 manufactured in the USA made from tool steel. This comes with a flat install base, guide bushing, and pusher used to install and push out a bearing. The portable proof-load tool can be used with a digital or dial indicator that is used with a donut load cell to proof-load a bearing using special proof-load dies (not included, but available upon request). This tool is heat treated and coated in black oxide.
